Product Details:
|
| Features: | Fireproof|Integrated|Perforated | Product Name: | PVC Wall Cladding |
|---|---|---|---|
| Application: | Bathroom|Kitchen|Laundry|Interior|Decorative | Ceiling Tile Shape: | Strip |
| Material: | Calcium Carbonate|PVC Resin | Surface Process: | Lamination And Extruded |
| Size: | 5.9meters*250mm*5mm | ||
| High Light: | pvc wall cladding sheets,pvc wall cladding panels |
||

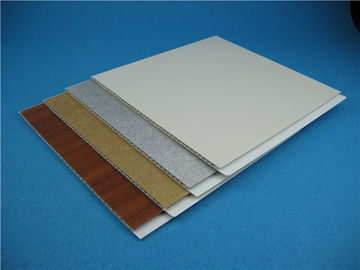

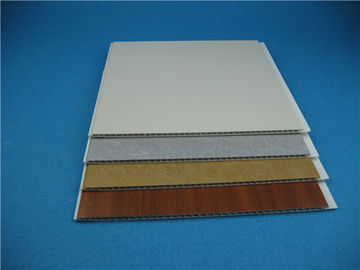

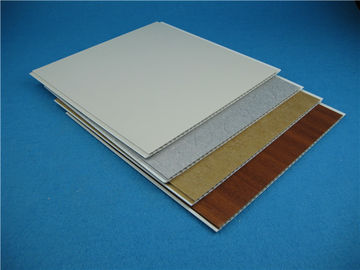

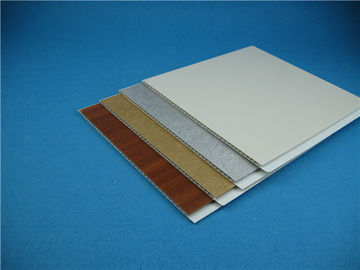

Customized Colour and Various Size PVC Wall Cladding for Construction
Quick Detail:
• Type: Decorative Material PVC Wall Cladding
• Function: Fireproof, Heat Insulation, Moisture-Proof, Mould-Proof, Sound-Absorbing, Waterproof
• Feature: Artistic Ceilings, Honeycomb Ceilings, Integrated Ceilings, Perforated Ceilings
• Ceiling Tile Shape: Strip
• Material: PVC Resin, calcium carbonate
• PVC content: 50%, 60%, 73%, 77%, 87%
• Weight: 1.5-4 kg/sqm
• Surface Process: Laminated
• Quality Guarantee: 25 years
• Usage: As interior wall cladding and ceiling covering
Description:
1. Self-fire extinguishing, non-flammable.
2. Durable and fadeproof.
3. It is impenetrable by insects or termites, and won’t rot or rust.
4. Resistance to weather/ special chemicals; Waterproof / Washable.
5. The excellent rigid and superior impacted surface is without any peeling.
6. Natural wood grain: showing authentic wood structure and artistic sense.
7. Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right.
8. Quick maintenance and no need of painting.
9. The simple and fast installation can save a lot of time and manpower cost.
Applications:
In recent years PVC has become an advantageous alternative than traditional materials for decorating
and rearranging of interior spaces in the various environments such as residences, hotels, restaurants,
industrial units, individual offices, bathrooms, kitchens, laundries.
Specifications:
|
Product name |
Customized Colour and Various Size PVC Wall Cladding for Construction |
|
Main material |
PVC (50%, 60%, 73%, 77%, 87% or as your request), calcium carbonate and other chemicals |
|
Usual specification |
Length: customized size, such as 2.95m, 3m, 3.8m, 5.6m, 5.8m, 5.95m Width: 5cm to 40cm or customized Thickness: 5mm to 10mm or customized |
|
Surface treatment |
Oil print, hot stamping foil, thermal transfer print, laminated and so on as your pattern and color |
|
Surface effect |
Bright/glossy, high glossy, matt, gleam, roller coating and so on |
|
Production quality |
Light of weight, powerful strength, high intensity, heat insulation, flame resistant, corrode resistant, age resistant, no aspiration, easy cleaning, easy installing and so on |
|
Producing scale |
With more than 60 PVC production lines and 100 kinds of moulds |
|
Certificate |
ISO9001:2000, Soncap, Intertek, SGS |
|
Application |
Hotels, commercial buildings, hospital, schools, home kitchen, bathroom, indoor decoration and so on |
|
Sample |
Free with International Express Delivery |
Competitive Advantage:
We are professional in PVC extrusion products for nearly 20 years.
With advanced production lines from Germany and Italy,
we have a total annual capacity of over 5 million square meters PVC wall and ceiling panels,
over 6,000MT WPC plastic wood composite products, and over 2,000MT other PVC vinyl products, including PVC wall claddings and PVC ceiling panels.
Our company has strong technology capability.
We have more than 20 engineers and technicians who are specializing in developing new products.
Kinds of types and design colors we have developed are leading the fashion in Chinese decoration field. We have almost 300 chain shops and own several patents in China.
Our products sell well in Europe, the Middle East and North America.
Test Report
Fire test report of PVC Wall Cladding for Construction
|
Report No. |
V03-1300143 |
Specification |
200×10mm |
||||
|
Product |
PVC Wall Cladding |
Standard |
BS EN 13501-1:2007 |
||||
|
Test Items |
Measure Unit |
Technical Requirement |
Test Results |
Individual Judgment |
|||
|
Fire growth rate index(Figra) |
W/s |
C |
≤250 |
105 |
Compliant |
||
|
Lateral flame spread( LFS) |
m |
<edge of specimen |
Yes |
Compliant |
|||
|
Total heat release within 600 s(THR 600s) |
MJ |
≤15 |
11.5 |
Compliant |
|||
|
Flame spread(Fs) |
Surface |
mm |
≤150 |
30 |
Compliant |
||
|
Edge |
33 |
Compliant |
|||||
|
Smoke growth rate (SMOGRA) |
m2/s2 |
S2 |
≤180 |
192 |
S3 Compliant |
||
|
Total smoke production within 600 s(THR 600s) |
m2 |
≤200 |
666 |
||||
|
Flaming droplests/particles |
------ |
d0 |
No flaming droplets/particles occur within 600s |
Yes |
Compliant |
||
|
Ignition of the filter paper |
------ |
No ignition of the filter paper |
Yes |
Compliant |
|||
|
Conclusion |
The combustion performance of sample is satisfied BS EN 13501-1:2007 about grade C-s3,d0. |
||||||
Antimicrobial Test Report
|
Item Name |
Escherichia coli ATCC 25922 |
|
|
After 24th Average of the viable cell(cfu/piece) |
Antimicrobial rate (%) |
|
|
Control |
5.6×106 |
------ |
|
Sample |
<20 |
>99 |
|
|
Staphylococcus aureus ATCC6538 |
|
|
Control |
4.2×105 |
------ |
|
Sample |
1.1×103 |
>99 |
|
Product line name |
Production Line Capacity |
Actual Units Produced(Previous Year) |
|
PVC Panel |
5,000,000m2 /Year |
4,500,000m2 |
|
PVC Foam Profiles |
6000T/Year |
4800T/Year |
Export Market Distribution
|
Market |
Revenue(Previous Year) |
Total Revenue (%) |
|
Europe |
Confidential |
46% |
|
North American |
Confidential |
34% |
|
Mid East |
Confidential |
10% |
|
Southeast Asia |
Confidential |
8% |
|
Africa |
Confidential |
2% |
Production Machinery:
|
Machine Name |
Brand & Model No. |
Quantity |
Condition |
|
Mixing Machine |
No Information |
7 |
Acceptable |
|
Extrusion Machine |
No Information |
60 |
Acceptable |
|
Printing Machine |
No Information |
3 |
Acceptable |
|
Hot Stamping Machine |
No Information |
4 |
Acceptable |
|
Laminated Machine |
No Information |
2 |
Acceptable |
How do I purchase your goods?
1. Select product
2. Send us an online enquiry or by email
3. We quote and prepare samples if necessary
4. You confirm the samples and send a Purchase order
5. We send you proforma invoice with shipping cost.
6. Confirmed the PI and Done the Payment,
7. After received the payment bank slip then we arrange production and shipping accordingly.
8. Delivery
How do the payment?
a. T/T in advance (Telegraphic Transfer) for the following:
1/. new customer
2/. small order or sample order
3/. air shipment
b. Deposit 30%, then T/T balance before shipment, for reliable customer
c. Irrevocable L/C at sight, for old customers and volume orders.
How long is the lead time?
Normally we need 15 days after payment,if the product is need open new tooling,maybe need more time.
The exact delivery time will depend the exact order and our sales will reply you.
