Product Details:
|
| Features: | Waterproof, Artistic, Honeycomb | Application: | Office |
|---|---|---|---|
| Ceiling Tile Shape: | Strip | Material: | PVC Resin, Calcium Carbonate |
| Product Name: | PVC Wall Panels | Surface Process: | Printing, Hot Stamping, Laminated |
| High Light: | 3d wall panels,waterproof wall panels |
||

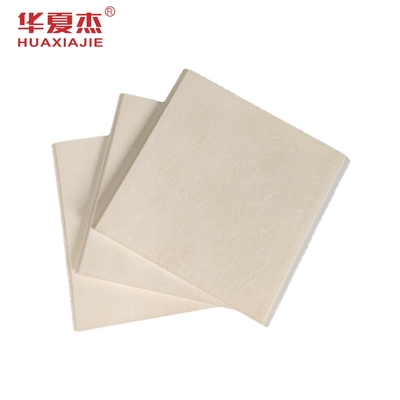

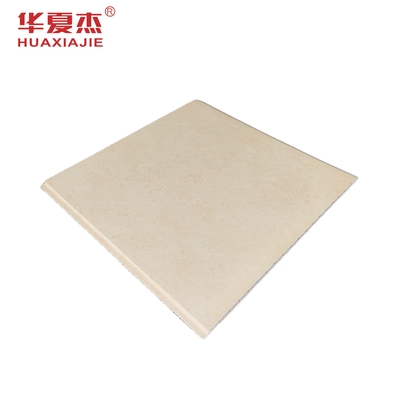

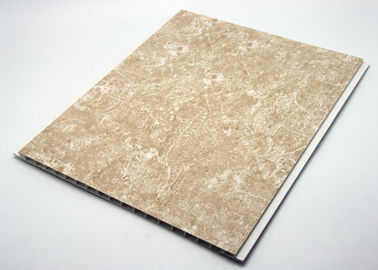

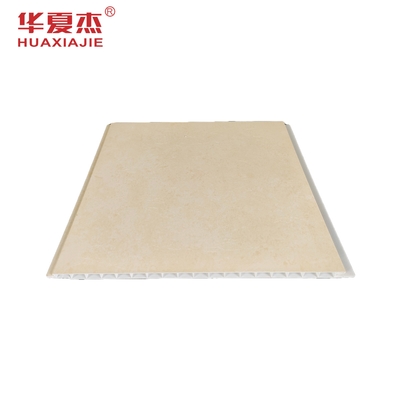

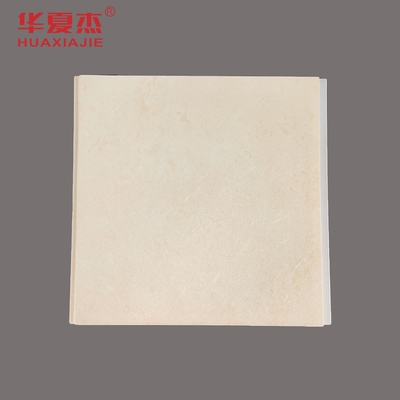

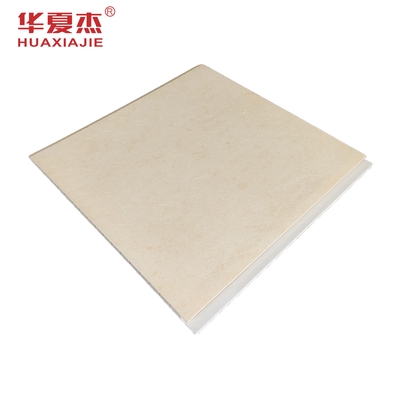

Honeycomb PVC Wall Panels For Office False Ceiling , Printing 3D Wall Panels
Quick Detail:
• Type: PVC Ceiling Tiles or PVC wall panel
• Function: Fireproof, Heat Insulation, Moisture-Proof, Mould-Proof, Sound-Absorbing, Waterproof
• Feature: Artistic Ceilings, Honeycomb Ceilings, Integrated Ceilings, Perforated Ceilings
• Ceiling Tile Shape: Strip
• Material: PVC Resin, calcium carbonate
• PVC content: 50%, 60%, 73%, 77%, 87%
• Weight: 1.5-4 kg/sqm
• Surface Process: Printing, Hot stamping, Laminated
• Quality Guarantee: 25 years
• Usage: Ceiling panel and Wall panel
Description:
1. Self-fire extinguishing, non-flammable.
3. It is impenetrable by insects or termites, and won’t rot or rust.
4. Resistance to weather/ special chemicals; Waterproof / Washable.
5. The excellent rigid and superior impacted surface is without any peeling.
6. Natural wood grain: showing authentic wood structure and artistic sense.
7. Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right.
8. Quick maintenance and no need of painting.
9. The simple and fast installation can save a lot of time and manpower cost.
Applications:
In recent years PVC has become an advantageous alternative than traditional materials for decorating
and rearranging of interior spaces in the various environments such as residences, hotels, restaurants,
industrial units, individual offices, bathrooms, kitchens, laundries.
Specifications:
|
Product name |
PVC Panel |
|
Main material |
PVC (50%, 60%, 73%, 77%, 87% or as your request), calcium carbonate and other chemicals |
|
Usual specification |
Length: customized size, such as 2.95m, 3m, 3.8m, 5.6m, 5.8m, 5.95m Width: 5cm to 40cm or customized Thickness: 5mm to 10mm or customized |
|
Surface treatment |
Oil print, hot stamping foil, thermal transfer print, laminated and so on as your pattern and color |
|
Surface effect |
Bright/glossy, high glossy, matt, gleam, roller coating and so on |
|
Production quality |
Light of weight, powerful strength, high intensity, heat insulation, flame resistant, corrode resistant, age resistant, no aspiration, easy cleaning, easy installing and so on |
|
Producing scale |
With more than 60 PVC production lines and 100 kinds of moulds |
|
Certificate |
ISO9001:2000, Soncap, Intertek, SGS |
|
Application |
Hotels, commercial buildings, hospital, schools, home kitchen, bathroom, indoor decoration and so on |
|
Sample |
Free with International Express Delivery |
Competitive Advantage:
We are professional in PVC extrusion products for more than 10 years. With advanced production lines
from Germany and Italy, we have a total annual capacity of over 5 million square meters PVC wall and
ceiling panels, over 6,000MT plastic-wood products, and over 2,000MT other PVC products. Our company
has strong technology capability. We have more than 20 engineers and technicians who are specializing in
developing new products. All kinds of types and design colors we have developed are leading the fashion in
Chinese decoration field. We have more than 140 chain shops and own several patents in China. Our
products sell well in Europe, the Middle East and North America.
Test Report
Fire test report
|
Report No. |
V03-1300143 |
Specification |
200×10mm |
||||
|
Product |
PVC Wall Panel |
Standard |
BS EN 13501-1:2007 |
||||
|
Test Items |
Measure Unit |
Technical Requirement |
Test Results |
Individual Judgment |
|||
|
Fire growth rate index (Figra) |
W/s |
C |
≤250 |
105 |
Compliant |
||
|
Lateral flame spread ( LFS) |
m |
<edge of specimen |
Yes |
Compliant |
|||
|
Total heat release within 600 s(THR 600s) |
MJ |
≤15 |
11.5 |
Compliant |
|||
|
Flame spread(Fs) |
Surface |
mm |
≤150 |
30 |
Compliant |
||
|
Edge |
33 |
Compliant |
|||||
|
Smoke growth rate (SMOGRA) |
m2/s2 |
S2 |
≤180 |
192 |
S3 Compliant |
||
|
Total smoke production within 600 s(THR 600s) |
m2 |
≤200 |
666 |
||||
|
Flaming droplests/particles |
------ |
d0 |
No flaming droplets/particles occur within 600s |
Yes |
Compliant |
||
|
Ignition of the filter paper |
------ |
No ignition of the filter paper |
Yes |
Compliant |
|||
|
Conclusion |
The combustion performance of sample is satisfied BS EN 13501-1:2007 about grade C-s3,d0. |
||||||
Antimicrobial Test Report
|
Item Name |
Escherichia coli ATCC 25922 |
|
|
After 24th Average of the viable cell(cfu/piece) |
Antimicrobial rate (%) |
|
|
Control |
5.6×106 |
------ |
|
Sample |
<20 |
>99 |
|
|
Staphylococcus aureus ATCC6538 |
|
|
Control |
4.2×105 |
------ |
|
Sample |
1.1×103 |
>99 |
